Customized industrial aluminium profile cnc machining aluminum extrusion

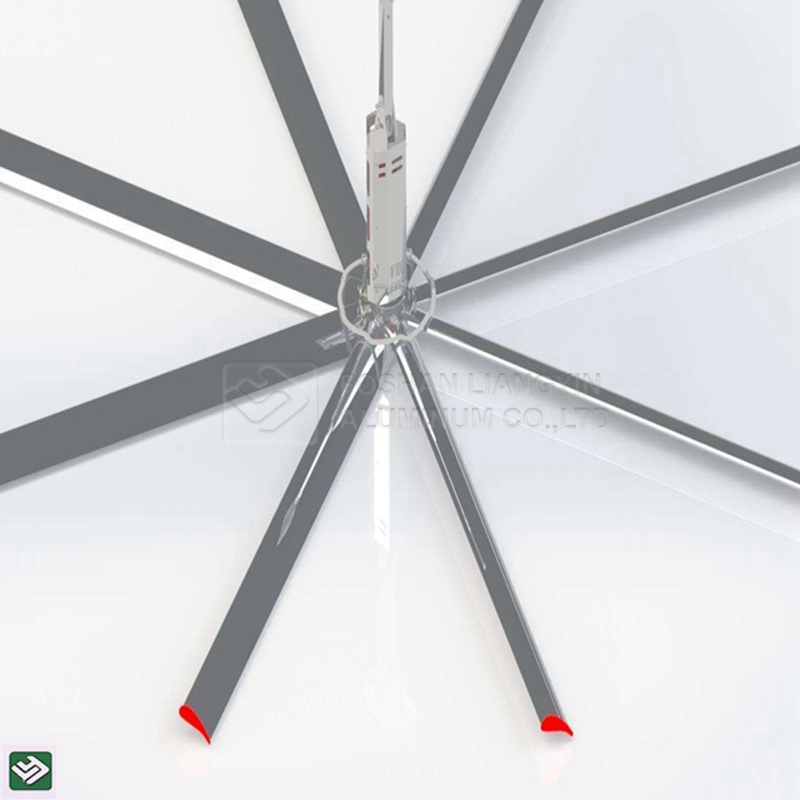

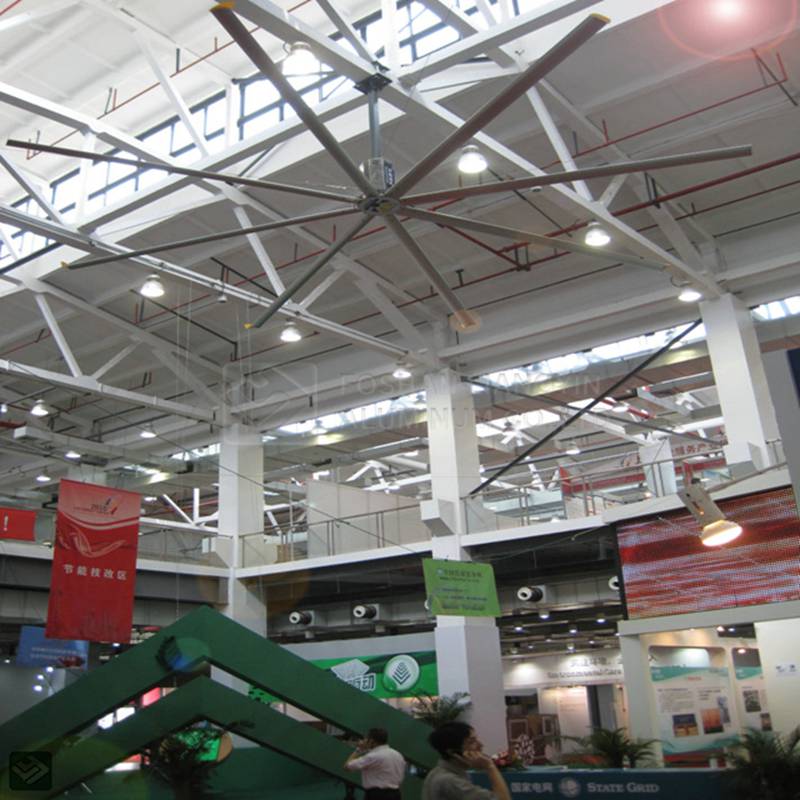

The materials used in Industrial Fan Blades or fan blades are usually prefabricated steel, cast aluminum or prefabricated aluminum, prefabricated stainless steel or other rare metals. The shape of the fan blades can be almost any shape from square to round to rectangular.

Place of Origin: CN, GUA

Grade: 6000 series

Temper: T4-T6

Application: Industrial

Alloy Or Not: Is Alloy

Brand Name: LIANGYIN

Type: Aluminum extrusion fan blade

Color: Milled or Customized

Thickness: 0.6mm-Customized

Surface Treatment: Mill, Anodized, Powder Coated, Electrophoresis, or customized

Certification: ISO9001-2015

Fabrication: Cutting, Drilling, Tapping, Punching, Bending, etc

Payment term: T/T, L/C, etc

Main Market: Europe, America, Southeast Asia, MIDE

Chemical Composition


Industrial Aluminum Profiles Flexible Solutions for Applications


Aluminum profiles have become one of the most popular and preferred materials in most industries. As a professional manufacturer of aluminum profiles, we not only focus on building materials and solar energy industries but also on other different applications of aluminum profiles.

We have established higher quality standards to meet market demands. Our job is to understand our customers and help them reduce costs and maximize profits.

We are eager to be your material supplier, contact us today to find out how we can help.

GRADE6063606164633003
STANDARDGB/T 3190-1996
AlRemainRemainRemainRemain
Si0.2-0.60.4-0.80.2-0.6<=0.6
Cu<=0.10.15-0.4<=0.20.05-0.2
Mg0.45-0.90.8-1.20.45-0.9/
Zn<=0.1<=0.25<=0.05<=0.1
Mn<=0.1<=0.15<=0.051.0-1.5
Ti<=0.1<=0.15//
V////
Fe<=0.35<=0.7<=0.15<=0.7
Cr<=0.10.04-0.35//
SINGLE0.05/0.050.05
TOTAL0.15/0.150.15


Product Description

Since 2009, LIANGYIN ALU has manufactured many customized extruded metal parts, especially aluminum parts. LIANGYIN ALU from extrusion to CNC processing custom aluminum profiles, and finally assembling and packaging your aluminum parts internally, Aluminum Profile Manufacture will help you reduce a large number of scratches from the production process to the waste rate during transportation. Click to buy.


Process of CNC Aluminum Extrusion



The aluminum extrusion profiles process includes the following steps:


After designing and shaping the mold shape, the cylindrical aluminum alloy blank is heated to 800°F-925°F.

The aluminum billet is then transferred to the loader, where lubricant is added to prevent it from sticking to the extruder, indenter or handle.

A pressure head is used to apply tremendous pressure to the simulated block, pushing the aluminum billet into the container, forcing it through the mold.

To avoid the formation of oxides, liquid or gaseous nitrogen is introduced and allowed to flow through parts of the mold. This creates an inert atmosphere and extends the life of the mold.

The extruded part is transferred to the output table as a slender piece and is now the same shape as the die opening. It is then pulled to the cooling table, where the fan cools the newly created aluminum extrusion.

After cooling, the extruded aluminum is moved to the stretching machine for straightening and work hardening.

The hardened extrusion is brought to the saw table and cut to the required length.

The last step is to heat the extruded part in an aging furnace to harden the aluminum by accelerating the aging process.

Contact us.

SHAPESquare, round, shaped, rectangular, customized
APPLICATIONIndustry, furniture, lighting, decorations, industry, constructions, and so on
SURFACE TREATMENTMill finish, anodized, powder coating, fluorine carbon spraying, and so on
COLORSSilver, black, blue, wood color, RAL powder coating color and so on
DEEP PROCESSCNC, drilling, punching, cutting, bending, assembling
PACKING DETAILESInside: packed with plastic protective film/cotton to protect each pieceOutside: wrap to be bundles by waterproof craft paper
DELIVERY TIMEMass production completed: 20-30 days after sample is confirmed by client
FOB PORTFOSHAN/SHENZHEN/GUANGZHOU
PAYMENT TERMST/T 30% for deposit, balance before shipping
PRODUCTION CAPACITY5000 tons monthly, 60000 tons yearly
CERTIFICATESSGS, CE, ISO, QUOLANOD AVAILABLE

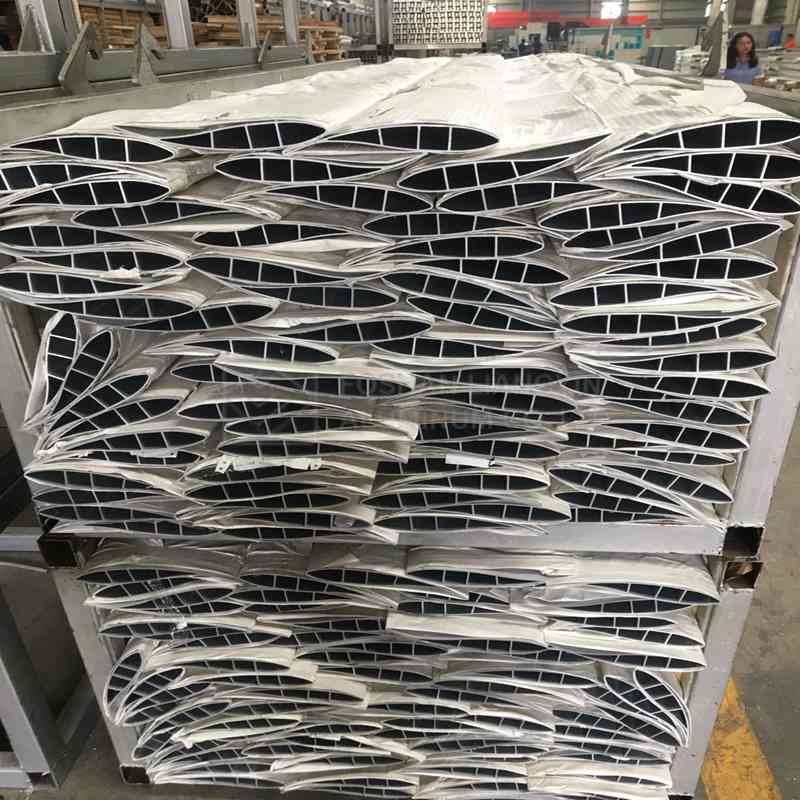

Package & Shipment

Packaging Detail: Kraft paper/Plastic bag/Shrink Film/Carton Box/Wooden Pallet/Wooden Box

Port: Shenzhen/Foshan/Guangzhou


Customized Outdoor LED Light Aluminum Extrusion Profile Pin Fin Heatsink Enclosure



FAQ:

1.Which kind alloy profiles can your factory produce?

We can produce 6061,6063, 3003, 6463.

2.Which kind of aluminum alloy is better?

Should according to the usage to select workable alloy

Alloy 6063 is widely used as building aluminum windows and doors,frame of curtain wall and general accessories of industrial products. Looks beautiful after anodizing or coating surface.

6061 is widely used in industry equipment.

Alloy 3003 is one kind of antirust aluminum alloy most widely used. Mostly used as the parts requirement for high plasticity and good weldability.

3.Why need do anodizing process?

Aluminum alloy is active metal, though can get porous oxidation film in air but not strong enough for corrosion resistance. After anodizing, there will be anodized film to get improve its corrosion resistance, abrasion resistance and decorative.

4.Does your factory produce the die-casting aluminum product?

We don't produce die-casting aluminum alloy products at present. But we can cooperate with many die-casting factories in Foshan.

5.Why we need painting?

Can improve the corrosion resistance, and  get colorful surface by powder coating  for the constructional profiles.

6.What kind products can you produce?
Aluminum extrusion profiles, aluminum parts cnc machining, aluminum led housing, aluminium rail, aluminium profile for led strips, aluminium rail, aluminium led profile, aluminum profile, aluminum heat sink, aluminium extrusion profile, aluminum machining.

7.Your sample is free of charge?

Sample Fee: Negotiate

Samples: Available for evaluation before place order

Sample Time: According the products

8. Who do I contact if I have a problem?

1,We're a well-established manufacture for aluminium products,having been in this line for 11 years,we're confident we can give our customers complete satisfication.

2,Good customer service is immensely important to us. We will be on hand to answer any questions you have at any stage of the project. You could e-mail us.
