  • customized aluminum profile heatsink extrusion for LED lighting cn

  • customized aluminum profile heatsink extrusion for LED lighting cn

  • customized aluminum profile heatsink extrusion for LED lighting cn

  • customized aluminum profile heatsink extrusion for LED lighting cn

customized aluminum profile heatsink extrusion for LED lighting cn

Place of Origin: CN, GUA

Grade: 6063/6061

Temper: T4-T6

Application: Industrial Heat Sink

Alloy Or Not: Is Alloy

Brand Name: LIANGYIN

Type: Heat sink

Color: Silver or Customized

Thickness: 0.6mm-Customized

Surface Treatment: Mill, Anodized, Powder Coated, Electrophoresis, or customized

Certification: ISO9001-2015

Fabrication: Cutting, Drilling, Tapping, Punching, Bending, etc

Payment term: T/T, L/C, etc

Main Market: Europe, America, Asia, MIDE


Chemical Composition
GRADE6063606164633003
STANDARDGB/T 3190-1996
AlRemainRemainRemainRemain
Si0.2-0.60.4-0.80.2-0.6<=0.6
Cu<=0.10.15-0.4<=0.20.05-0.2
Mg0.45-0.90.8-1.20.45-0.9/
Zn<=0.1<=0.25<=0.05<=0.1
Mn<=0.1<=0.15<=0.051.0-1.5
Ti<=0.1<=0.15//
V////
Fe<=0.35<=0.7<=0.15<=0.7
Cr<=0.10.04-0.35//
SINGLE0.05/0.050.05
TOTAL0.15/0.150.15



Product Description



SHAPESquare, round, shaped, rectangular, customized
APPLICATIONIndustry, furniture, lighting, decorations, industry, constructions, and so on
SURFACE TREATMENTMill finish, anodized, powder coating, fluorine carbon spraying, and so on
COLORSSilver, black, blue, wood color, RAL powder coating color and so on
DEEP PROCESSCNC, drilling, punching, cutting, bending, assembling
PACKING DETAILESInside: packed with plastic protective film/cotton to protect each pieceOutside: wrap to be bundles by waterproof craft paper
DELIVERY TIMEMass production completed: 20-30 days after sample is confirmed by client
FOB PORTFOSHAN/SHENZHEN/GUANGZHOU
PAYMENT TERMST/T 30% for deposit, balance before shipping
PRODUCTION CAPACITY5000 tons monthly, 60000 tons yearly
CERTIFICATESSGS, CE, ISO, QUOLANOD AVAILABLE

customized aluminum profile heatsink extrusion for LED lighting

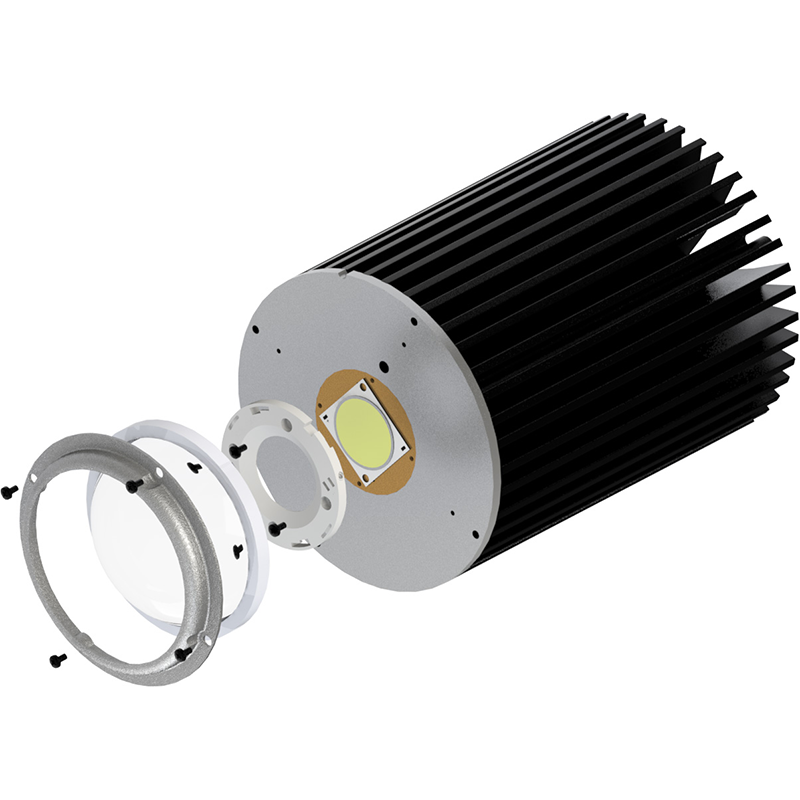

The purpose of the utility model is to provide a radiator component for LED lamps, so that one or more identical radiator components can be combined into a radiator suitable for LED lamps of different powers, so that the radiator mold is simplified, there is no need to develop a radiator mold for each LED lamp of different powers, and the mold development fee is saved. The utility model also aims to provide a heat dissipation effect, light weight, and can make LED lamp heating temperature.


Package & Shipment

Packaging Detail: Kraft paper/Plastic bag/Shrink Film/Carton Box/Wooden Pallet/Wooden Box

Port: Shenzhen/Foshan/Guangzhou


Customized Outdoor LED Light Aluminum Extrusion Profile Pin Fin Heatsink Enclosure
