Place of Origin: CN, GUA
Grade: 6000 series
Temper: T3-T8
Application: LED
Alloy Or Not: Is Alloy
Brand Name: LIANGYIN

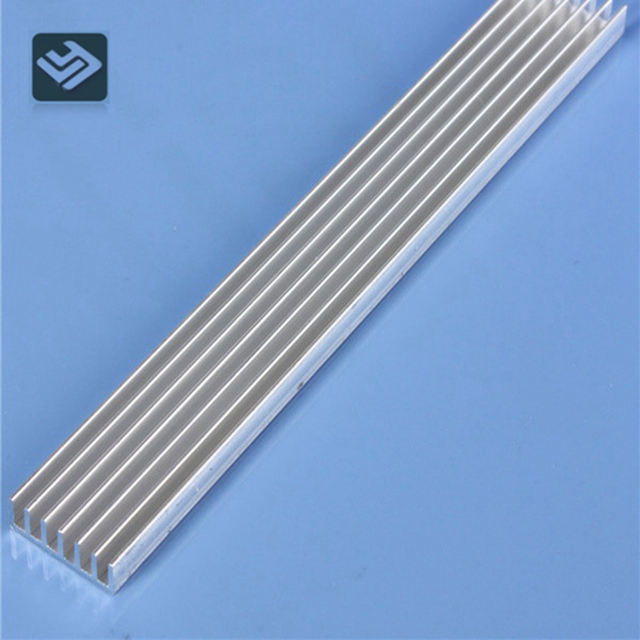

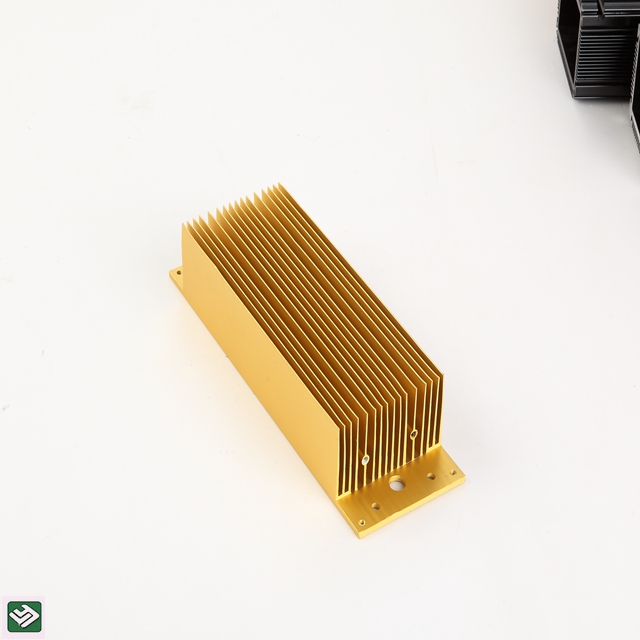

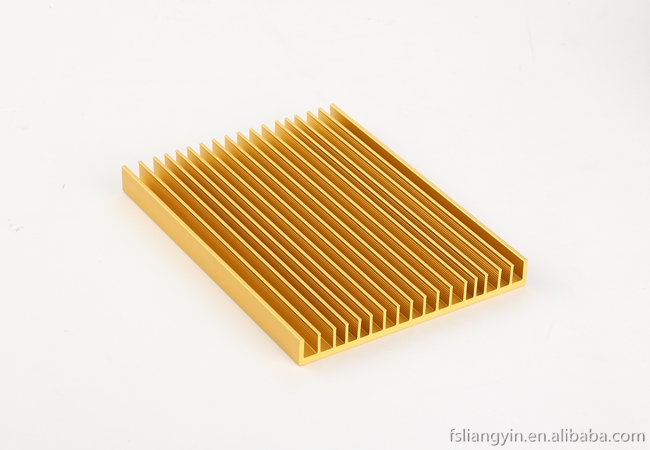

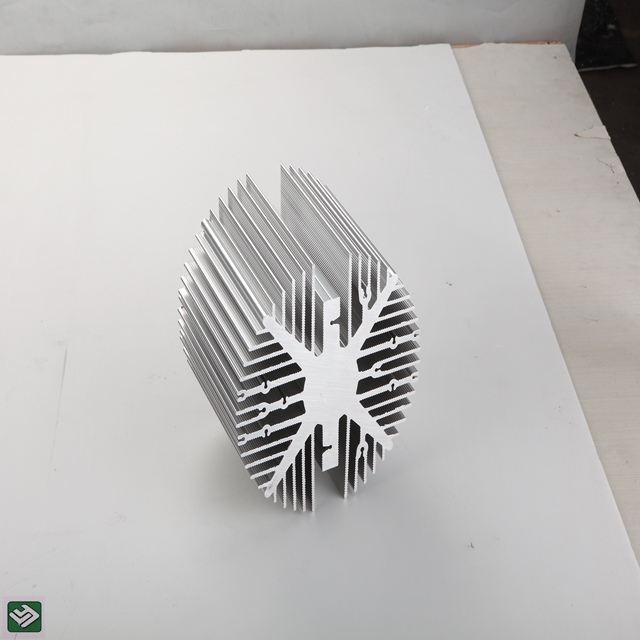

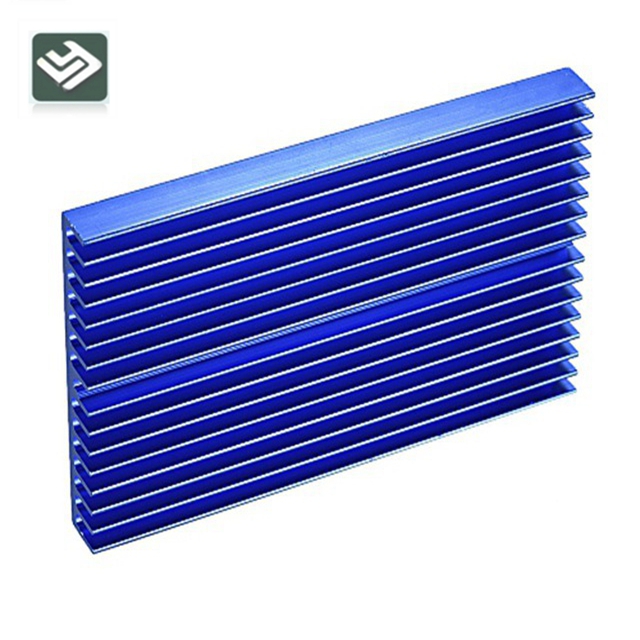

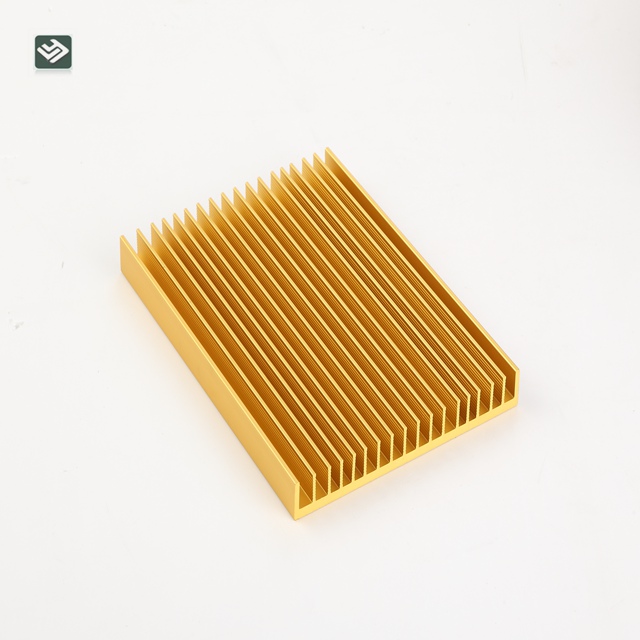

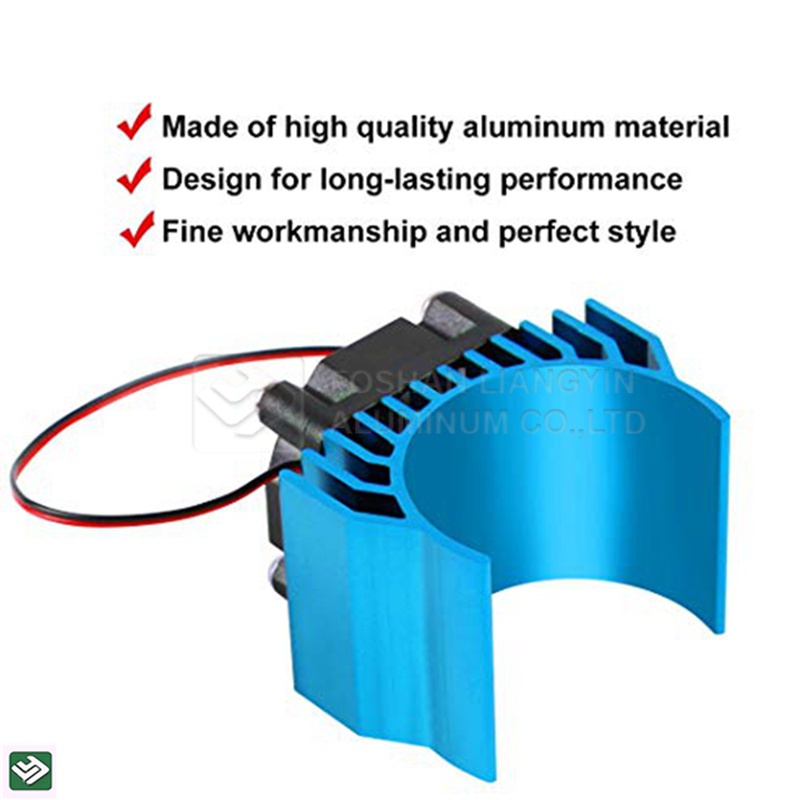

Type: Extrusion heatsink
Color: Nature sliver or Customized
Thickness: 0.6mm-Customized
Surface Treatment: Mill, Anodized, Powder Coated, Electrophoresis, or customized
Certification: ISO9001-2015
Fabrication: Cutting, Drilling, Tapping, Punching, Bending, etc
Payment term: T/T, L/C, etc
Main Market: Europe, America, Southeast Asia, MIDE
| GRADE | 6063 | 6061 | 6463 | 3003 |
| STANDARD | GB/T 3190-1996 | |||
| Al | Remain | Remain | Remain | Remain |
| Si | 0.2-0.6 | 0.4-0.8 | 0.2-0.6 | <=0.6 |
| Cu | <=0.1 | 0.15-0.4 | <=0.2 | 0.05-0.2 |
| Mg | 0.45-0.9 | 0.8-1.2 | 0.45-0.9 | / |
| Zn | <=0.1 | <=0.25 | <=0.05 | <=0.1 |
| Mn | <=0.1 | <=0.15 | <=0.05 | 1.0-1.5 |
| Ti | <=0.1 | <=0.15 | / | / |
| V | / | / | / | / |
| Fe | <=0.35 | <=0.7 | <=0.15 | <=0.7 |
| Cr | <=0.1 | 0.04-0.35 | / | / |
| SINGLE | 0.05 | / | 0.05 | 0.05 |
| TOTAL | 0.15 | / | 0.15 | 0.15 |
The main function is to continuously export the heat generated by the LED chip to the environment, so that the temperature of the chip remains within the required range, so as to ensure that the LED lamp can operate normally.The quality of the radiator mainly depends on the thermal resistance of the radiator, the smaller the thermal resistance, the lower the LED lamp temperature under the same conditions, the lower the LED temperature, the longer the service life of the chip will be.The heat resistance of the radiator shall include heat conductivity heat resistance and heat dissipation heat resistance.
Packaging Detail: Kraft paper/Plastic bag/Shrink Film/Carton Box/Wooden Pallet/Wooden Box
Port: Shenzhen/Foshan/Guangzhou
