Home > Products > Electronic Appliances Aluminum Parts
  • Custom enclosure aluminium electronic housing extruded aluminum box bright anodizing sm

  • Custom enclosure aluminium electronic housing extruded aluminum box bright anodizing sm

  • Custom enclosure aluminium electronic housing extruded aluminum box bright anodizing sm

  • Custom enclosure aluminium electronic housing extruded aluminum box bright anodizing sm

  • Custom enclosure aluminium electronic housing extruded aluminum box bright anodizing sm

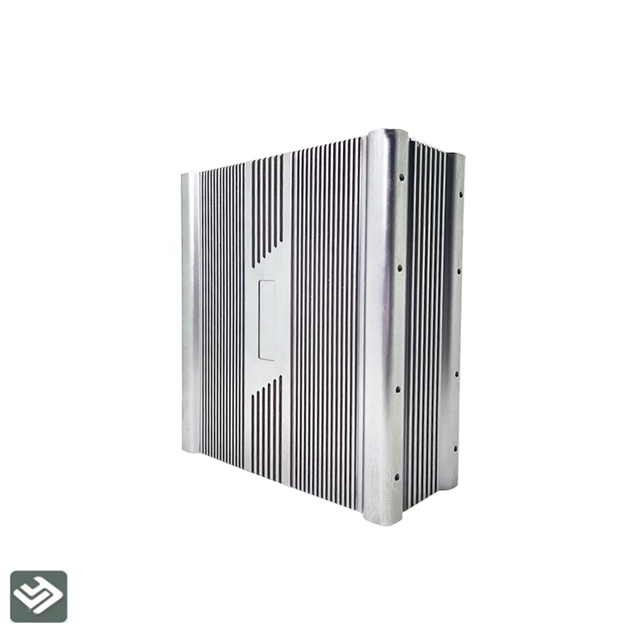

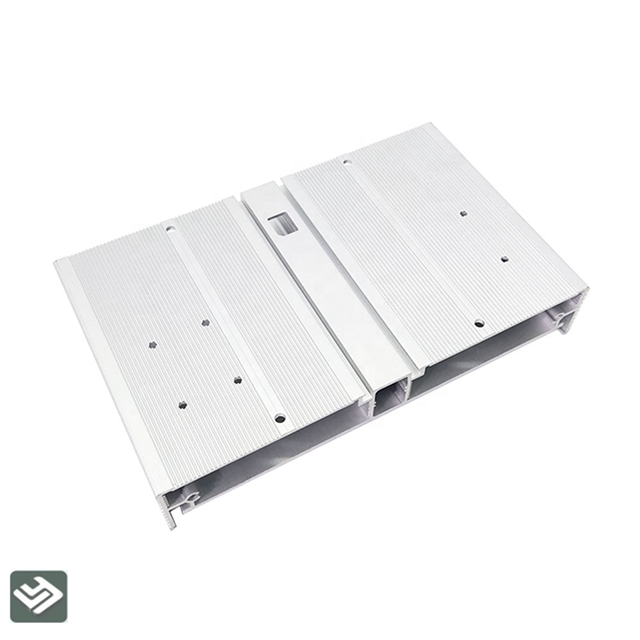

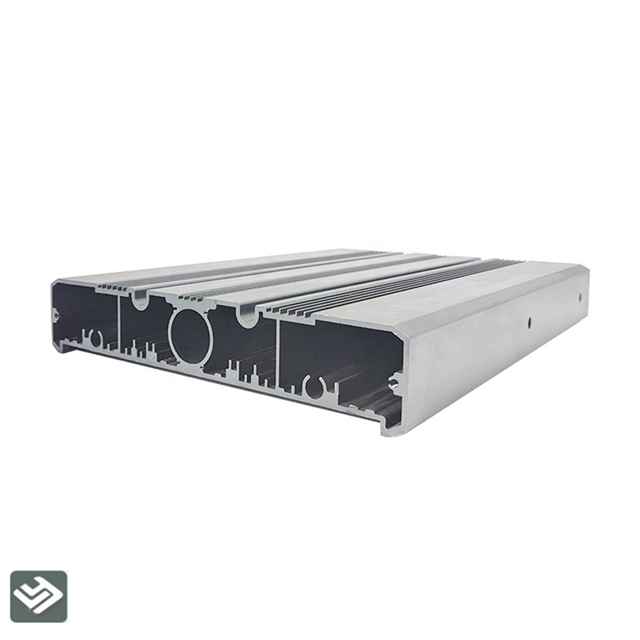

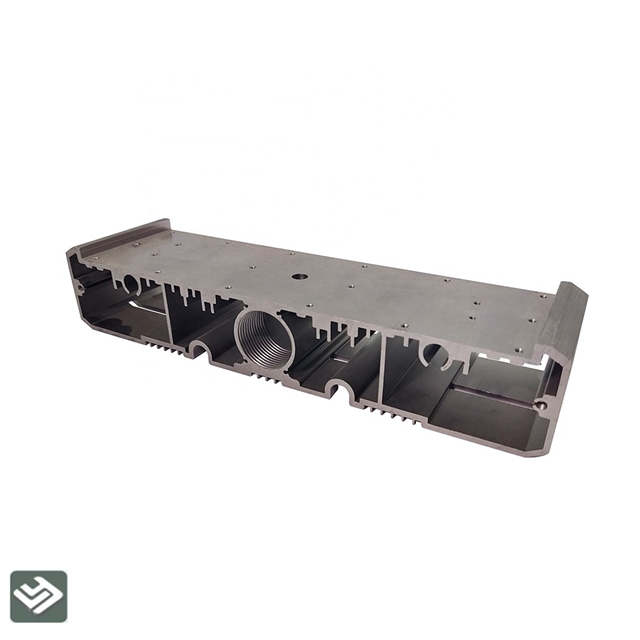

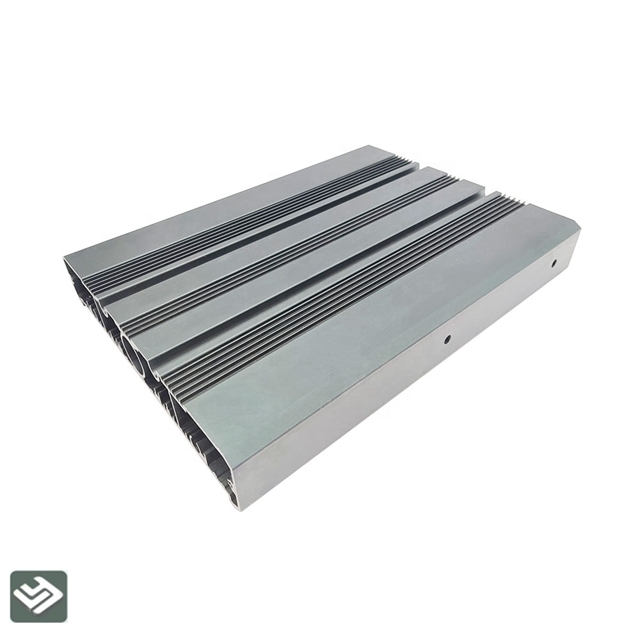

Custom enclosure aluminium electronic housing extruded aluminum box bright anodizing sm

Place of Origin: CN, GUA

Grade: 6063/6061

Temper: T3-T8

Application: Electronic

Alloy Or Not: Is Alloy

Brand Name: LIANGYIN

Type: Extrusion aluminum enclosure / housing

Color: Silver or Customized

Thickness: 0.6mm-Customized

Surface Treatment: Mill, Anodized, Powder Coated, Electrophoresis, or customized

Certification: ISO9001-2015

Fabrication: Cutting, Drilling, Tapping, Punching, Bending, etc

Payment term: T/T, L/C, etc

Main Market: Europe, America, Asia, MIDE


Chemical Composition


GRADE6063606164633003
STANDARDGB/T 3190-1996
AlRemainRemainRemainRemain
Si0.2-0.60.4-0.80.2-0.6<=0.6
Cu<=0.10.15-0.4<=0.20.05-0.2
Mg0.45-0.90.8-1.20.45-0.9/
Zn<=0.1<=0.25<=0.05<=0.1
Mn<=0.1<=0.15<=0.051.0-1.5
Ti<=0.1<=0.15//
V////
Fe<=0.35<=0.7<=0.15<=0.7
Cr<=0.10.04-0.35//
SINGLE0.05/0.050.05
TOTAL0.15/0.150.15



Product Description

There are many advantages to using an aluminum housing, including high temperature resistance, natural corrosion resistance, and high impact resistance. LIANGYIN offers a series of die-cast aluminum housings designed to withstand harsh environments.

All Aluminum Extrusion Enclosures have a high degree of stability and good heat dissipation and have a high-quality appearance due to the combination of a matt anodized finish and an attractive end element plastic part plastic end plate.

Aluminum Extrusion Enclosures

The profile housing can be made of aluminum or plastic. Our profile housings are mainly made of aluminum. The main body of this enclosure is composed of aluminum extruded profiles. Depending on the version, it is very light and has a thin wall, or very strong and thick. Depending on the type of housing, closed profiles with variable lengths, snap-in half-shell profiles, or one-side open profiles can be provided. This provides a lot of space for the processing of electronic devices.

Contact us to process and complete the shell according to your needs.


SHAPESquare, round, shaped, rectangular, customized
APPLICATIONIndustry, furniture, lighting, decorations, industry, constructions, and so on
SURFACE TREATMENTMill finish, anodized, powder coating, fluorine carbon spraying, and so on
COLORSSilver, black, blue, wood color, RAL powder coating color and so on
DEEP PROCESSCNC, drilling, punching, cutting, bending, assembling
PACKING DETAILESInside: packed with plastic protective film / cotton to protect each piece. Outside: wrap to be bundles by waterproof craft paper / carton box / plywood pallet / plywood box
DELIVERY TIMEMass production completed: 20-30 days after sample is confirmed by client
FOB PORTFOSHAN/SHENZHEN/GUANGZHOU
PAYMENT TERMST/T 30% for deposit, balance before shipping
EXTRUSION MACHINE SPECIFICATION600T - 3000T
CERTIFICATESSGS, CE, ISO, QUOLANOD AVAILABLE



Package & Shipment

Packaging Detail: Kraft paper/Plastic bag/Shrink Film/Carton Box/Plywood Pallet/Plywood Box

Port: Shenzhen/Foshan/Guangzhou

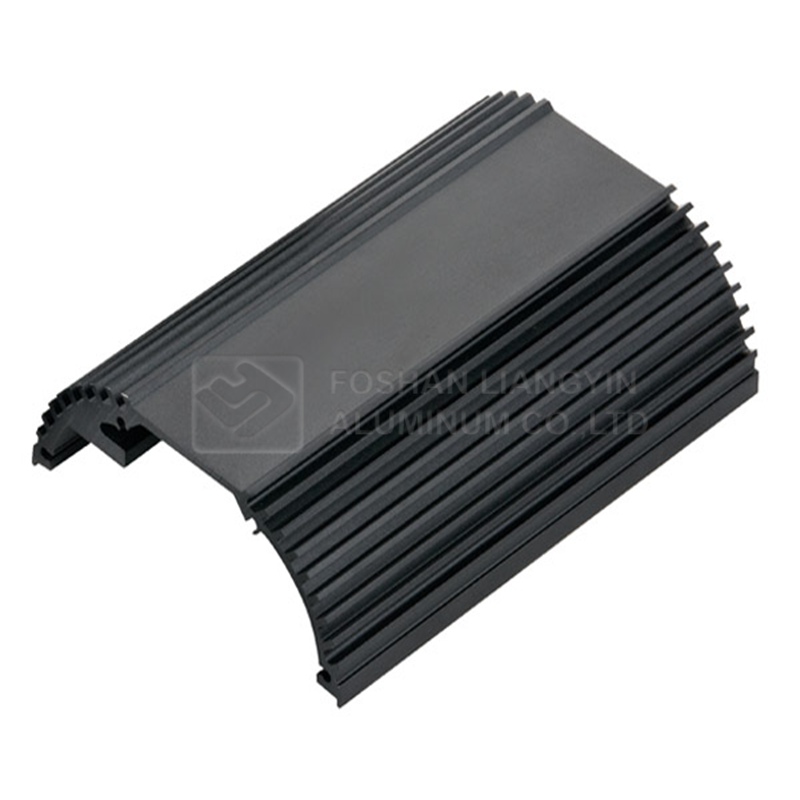

Customized Outdoor LED Light Aluminum Extrusion Profile Pin Fin Heatsink Enclosure



FAQ:

1.Which kind alloy profiles can your factory produce?

We can produce 6063, 6061, 3003, 6463.

2.Which kind of aluminum alloy is better?

Should according to the usage to select workable alloy

Alloy 6063 is widely used as building aluminum windows and doors,frame of curtain wall and general accessories of industrial products. Looks beautiful after anodizing or coating surface.

6061 is widely used in industry equipment.

Alloy 3003 is one kind of antirust aluminum alloy most widely used. Mostly used as the parts requirement for high plasticity and good weldability.

3.Why need do anodizing process?

Aluminum alloy is active metal, though can get porous oxidation film in air but not strong enough for corrosion resistance. After anodizing, there will be anodized film to get improve its corrosion resistance, abrasion resistance and decorative.

4.Does your factory produce the die-casting aluminum product?

We don't produce die-casting aluminum alloy products at present. But we can cooperate with many die-casting factories in Foshan.

5.Why we need painting?

Can improve the corrosion resistance, and get colorful surface by powder coating for the constructional profiles.

6.What kind products can you produce?
Aluminum extrusion profiles, customized aluminium product, heatsink for led, led profile, heat sink, aluminium profile for led strips, aluminum heatsink, aluminum led housing, aluminum led channel, 40x40 aluminium profile, custom aluminum parts.

7.Your sample is free of charge?

Sample Fee: Negotiate

Samples: Available for evaluation before place order

Sample Time: According the products

8. Who do I contact if I have a problem?

1,We're a well-established manufacture for aluminium products,having been in this line for 11 years,we're confident we can give our customers complete satisfication.

2,Good customer service is immensely important to us. We will be on hand to answer any questions you have at any stage of the project. You could e-mail us.


Chick here to contact and have your Free Samples
